Startseite > Produkte> Kabinett und Gestell> ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door

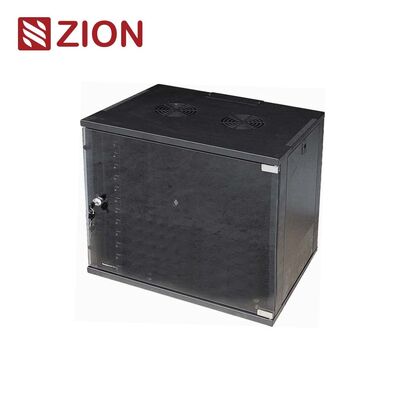

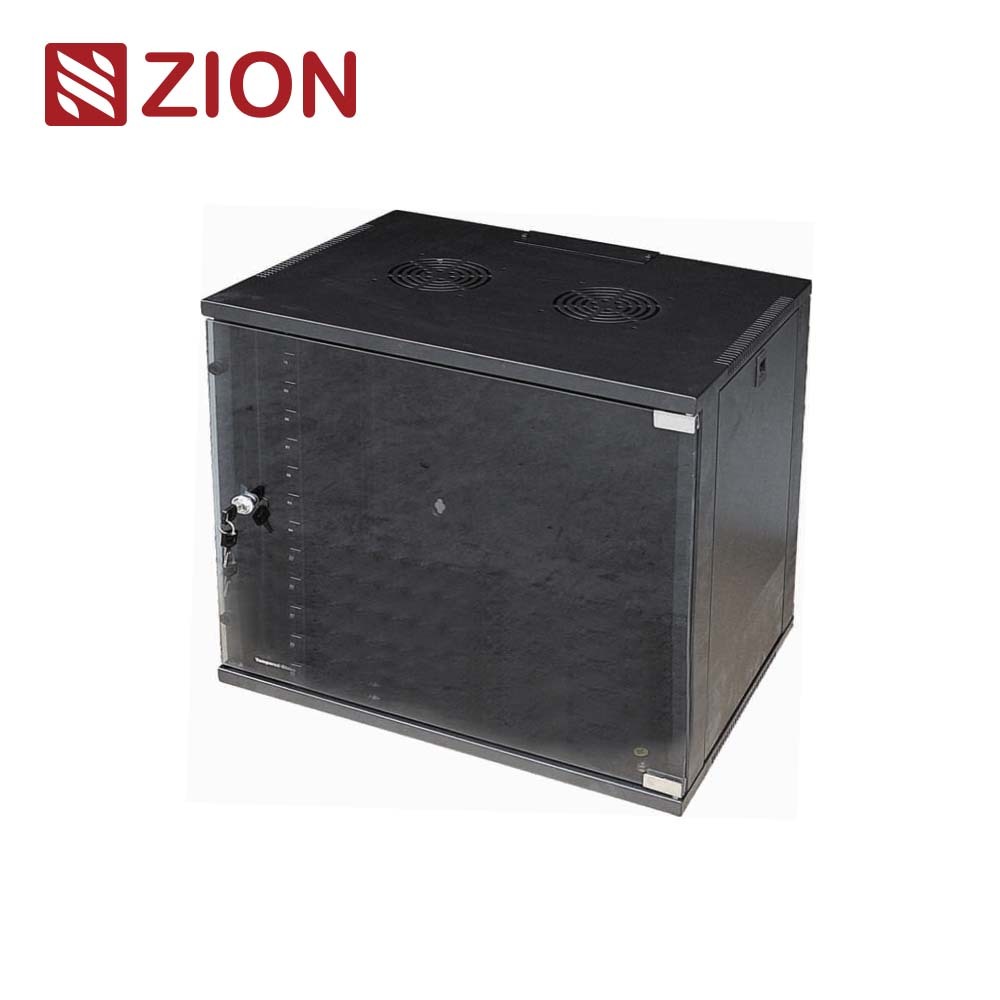

ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door

ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door
ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door
Grundlegende Informationen
Herkunftsort: China
Markenname: Zion communication OR OEM
Zertifizierung: ISO, CE, RoHS, UL
Modellnummer: Netzwerk-Rack-Schrank
Min Bestellmenge: 1.000 PC
Verpackung Informationen: 1 PC-/Plastictasche, PCS/Carton
Lieferzeit: Normalerweise 10 Arbeitstage
Zahlungsbedingungen: T/T, L/C
Versorgungsmaterial-Fähigkeit: 30.000 PCS/Monat
Bestpreis Kontakt
Detailinformationen
Modell: Netzwerk-Rack-Schrank Bnad: Zion-Kommunikation
Farbe: Schwarz, Grau Ladekapazität: 60kg
Hervorheben:

60kg Loading Capacity Wall Cabinet

,

Steel Frame Structure Network Rack Cabinet

,

Tempered Glass Front Door 19-inch Enclosure

Produkt-Beschreibung

ZM-C Single Section Wall Cabinet

The ZM-C Single Section Wall Cabinet is a compact 19-inch wall-mounted enclosure designed for small network, telecom, and security installations where organized cable routing, practical access, and reliable light-duty equipment deployment are required.

Network Integrators
Telecom Contractors
Security Installers
IT Procurement Teams
Project Managers
Edge Deployment Teams
Quick Takeaway
  • A compact 19-inch wall cabinet for indoor network, telecom, and security applications.
  • Best used where floor-standing cabinets are unnecessary but organized enclosure access is still needed.
  • Before ordering, confirm equipment depth, ventilation need, wall fixing method, and future expansion margin.
Request Datasheet / Sample
See Decision Rules
Contents
  1. Overview
  2. Key Features
  3. Technical Specifications
  4. Construction / Materials
  5. Applications
  6. Decision Rules / Engineer’s Shortcut
  7. Selection Guide
  8. FAQ
  9. Conclusion
Reserved Image Module

Add product front view, internal mounting profile image, installed project scene, or open-door maintenance view here.

Reserved Video Module

Suitable for installation demo, factory overview, cable-routing explanation, or ventilation upgrade presentation.


■1) Overview

The ZM-C Single Section Wall Cabinet is positioned as a compact 19-inch enclosure for small network, telecom, and security installations. It is designed for indoor light-duty deployments where a floor-standing cabinet would be oversized, but equipment protection, organized routing, and controlled access are still necessary.

Its steel frame structure, adjustable mounting system, and cable management design make it suitable for practical edge-side applications. For project teams, the key value is not only the compact size, but also the balance between installation convenience, maintenance access, and equipment compatibility.

Field reality

The right wall cabinet should be selected by actual deployment conditions, not just rack unit size. Depth, wall strength, cable direction, and equipment heat load often decide whether the project stays easy to maintain after installation.

ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door 0

■2) Key Features

The ZM-C cabinet is designed to support efficient installation and service work in compact indoor environments. Its structure and routing features focus on real project usability rather than unnecessary complexity.

Feature What It Means Project Benefit
Steel Frame Structure Single-section cabinet with precise craftsmanship Improves rigidity and installation confidence
19″ Equipment Compatible Suitable for standard IT and telecom devices Simplifies equipment compatibility planning
Tempered Glass Front Door Welded structure with over-180° opening Makes installation, inspection, and servicing easier
Bolted Side Panels Easy installation and maintenance access Helps reduce field service difficulty
Top & Bottom Cable Entry Cover plate for organized routing Improves cable discipline and routing order
Adjustable Mounting Rails L-shaped profiles for depth adjustment Supports more accurate equipment fit
Fan-Ready Top Panel Supports ventilation upgrade Useful when active thermal management is needed

■3) Technical Specifications

Item Specification
Rack Standard 19-inch
Frame Material SPCC high-quality cold rolled steel
Mounting Profile Thickness 1.2 mm
Other Parts Thickness 1.0 mm
Surface Treatment Degreasing → Pickling → Phosphating → Powder Coating
Static Loading Capacity Up to 60 kg
Protection Level IP20
Front Door Tempered glass front door
Door Opening Over 180°
Cable Entry Top and bottom cable entry with cover plate
Ventilation Fan-ready top panel
Standards Compliance ANSI/EIA RS-310-D, IEC 60297-2, DIN 41497 Part 1, DIN 41494 Part 7, GB/T 3047.2-92
Application Positioning Light-duty equipment deployment for indoor network, telecom, and security installations
Key takeaway
IP20 means indoor use is the baseline deployment condition.
60 kg static load suits light-duty equipment, not heavy equipment-room builds.
Depth adjustment and cable routing should be checked against the real equipment layout before purchase.

ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door 1

■4) Construction / Materials

The ZM-C cabinet uses SPCC cold rolled steel as its main structural material and combines a cabinet body, side panels, mounting profile, front door, and lock structure into a compact wall-mounted format. Its structure is designed around practical access and organized light-duty deployment rather than oversized capacity.

Structure Element Description Engineering Value
Cover Top cover with fan-ready area Supports organized top access and ventilation upgrade
Cabinet body Main structural enclosure body Forms the compact load-bearing framework
Side panel Bolted side access panel Improves installation and maintenance accessibility
Mounting profile L-shaped adjustable rail structure Helps match equipment depth and positioning
Front door Tempered glass door opening over 180° Supports visual inspection and easier front access
Lock Basic security closure Adds controlled access for installed equipment
Practical rule

For compact wall cabinets, structure quality matters most when the site has limited working space. Easy door opening, side access, and adjustable rails often reduce more field labor than a simple thickness comparison alone.

ZM-C Single Section Wall Cabinet with 60kg Loading Capacity, Steel Frame Structure, and Tempered Glass Front Door 2

■5) Applications

The ZM-C is best suited to indoor projects where equipment density is moderate, space is limited, and a controlled enclosure is required for operational order and maintenance convenience.

Application Scenario Why ZM-C Fits What to Verify Before Approval
Small network installation Compact wall-mounted 19-inch enclosure for standard devices Device depth, cable direction, wall support
Telecom edge point Supports organized indoor telecom device deployment Cable entry path, service clearance, growth space
Security installation Suitable for compact equipment concentrations in protected indoor sites Heat load, lock requirement, maintenance frequency
Branch-side access equipment Useful where a floor-standing cabinet would be excessive Shelf need, power arrangement, future expansion
Indoor light-duty deployment Provides an orderly and practical enclosure without using floor area Installation quality, access route, environmental suitability

■6) Decision Rules / Engineer’s Shortcut

For most engineering and procurement teams, the fastest correct choice is to verify installation method, indoor suitability, equipment depth, service access, and thermal behavior before locking the cabinet model.

Decision Point Choose ZM-C When Do Not Choose It When Alternative Direction Cost / Risk / Maintainability Impact
Installation type A wall-mounted 19-inch enclosure is required The project needs floor-standing capacity or central-room expansion Use a floor-standing cabinet Correct wall-cabinet use saves footprint and project cost
Load level Equipment remains within 60 kg static loading range The site needs heavier equipment support or larger structural reserve Select a higher-load cabinet platform Wrong load choice increases safety and reliability risk
Environment The site is indoor and IP20 is acceptable Outdoor or higher ingress protection is needed Use higher-protection enclosure solutions Wrong environment choice raises maintenance and failure risk
Depth match Adjusted mounting space fits actual device depth and cable allowance Equipment body plus connectors exceed the usable cabinet space Move to deeper or different cabinet format Depth mismatch is a common installation-delay cause
Thermal behavior Heat load is moderate and fan-ready support is sufficient The enclosed devices generate persistent high heat without thermal planning Choose a larger or more ventilation-oriented solution Ignoring heat reduces equipment life and operational stability
Access pattern Front access and side-panel service logic suit the maintenance plan The site needs unusually frequent rear or wide-side working access Use a cabinet with more service clearance Proper access design reduces labor and rework
Practical rule

If the project is indoor, wall-mounted, light-duty, depth-matched, and thermally manageable, ZM-C is usually a strong fit for compact network, telecom, and security applications.

■7) Selection Guide

A correct ZM-C selection depends on deployment details rather than headline size alone. In B2B purchasing, the most common issues come from underestimating equipment depth, cable entry direction, and service space after installation.

Selection Factor Question to Ask Recommendation
Rack capacity How many devices and accessories must be installed now and later? Leave reserve space instead of sizing only to current load
Depth What is the actual device depth including connectors and cable bend allowance? Verify usable depth with real device drawings if possible
Cable routing Will entry be from top, bottom, or both? Confirm routing path and cover-plate use before installation
Ventilation Will enclosed equipment generate enough heat to require active fan support? Evaluate fan option during the quotation stage
Service access Is there enough front and side clearance for maintenance? Reserve working space before final wall position is fixed
Project delivery Are there any custom requirements that affect the final BOM? Freeze the full cabinet configuration before production scheduling
Engineer’s shortcut

Start with installation type, then confirm device depth, load, ventilation, and service space. If all four match the actual site, the cabinet decision becomes much safer and easier to maintain later.

■8) FAQ

1. What applications is the ZM-C cabinet mainly designed for?

It is designed for small indoor network, telecom, and security installations that need a compact 19-inch wall-mounted enclosure.

2. Is this cabinet suitable for outdoor deployment?

No. The stated protection level is IP20, so it is intended for indoor use.

3. What kind of equipment can be installed in it?

It is suitable for standard 19-inch IT and telecom devices within the cabinet’s light-duty loading and depth limits.

4. Why are adjustable mounting rails important?

Adjustable L-shaped mounting rails help match real device depth and positioning, reducing installation mismatch risk.

5. Does the cabinet support ventilation upgrades?

Yes. The top panel is fan-ready, which makes it easier to plan active ventilation when needed.

6. What should procurement confirm before ordering?

Procurement should confirm equipment depth, cable-entry direction, wall-mount condition, ventilation need, quantity, and whether the maintenance plan fits the cabinet layout.

■9) Conclusion

The ZM-C Single Section Wall Cabinet is a practical and reliable wall-mounted solution for compact indoor network, telecom, and security deployments. Its strength lies in its steel frame structure, adjustable mounting system, organized cable-entry design, and practical service access rather than unnecessary oversizing.

For best project results, evaluate it by real installation conditions: device depth, indoor environment, wall support, thermal load, and maintenance access. When these conditions align, ZM-C becomes a cost-effective enclosure choice for organized light-duty equipment deployment.
