Startseite > Produkte> Kabinett und Gestell> CAB 400 Wall Cabinet with 400 mm Depth, 60kg Loading Capacity, and SPCC Steel Construction for Network and IT Equipment

CAB 400 Wall Cabinet with 400 mm Depth, 60kg Loading Capacity, and SPCC Steel Construction for Network and IT Equipment

CAB 400 Wall Cabinet with 400 mm Depth, 60kg Loading Capacity, and SPCC Steel Construction for Network and IT Equipment
CAB 400 Wall Cabinet with 400 mm Depth, 60kg Loading Capacity, and SPCC Steel Construction for Network and IT Equipment
Grundlegende Informationen
Herkunftsort: China
Markenname: Zion communication OR OEM
Zertifizierung: ISO, CE, RoHS, UL
Modellnummer: Netzwerk-Rack-Schrank
Min Bestellmenge: 1.000 PC
Verpackung Informationen: 1 PC-/Plastictasche, PCS/Carton
Lieferzeit: Normalerweise 10 Arbeitstage
Zahlungsbedingungen: T/T, L/C
Versorgungsmaterial-Fähigkeit: 30.000 PCS/Monat
Bestpreis Kontakt
Detailinformationen
Modell: Netzwerk-Rack-Schrank Bnad: Zion-Kommunikation
Farbe: Schwarz, Grau Ladekapazität: 60kg
Hervorheben:

400 mm Depth Wall Cabinet

,

60kg Loading Capacity Network Rack Cabinet

,

SPCC Steel Construction IT Equipment Enclosure

Produkt-Beschreibung

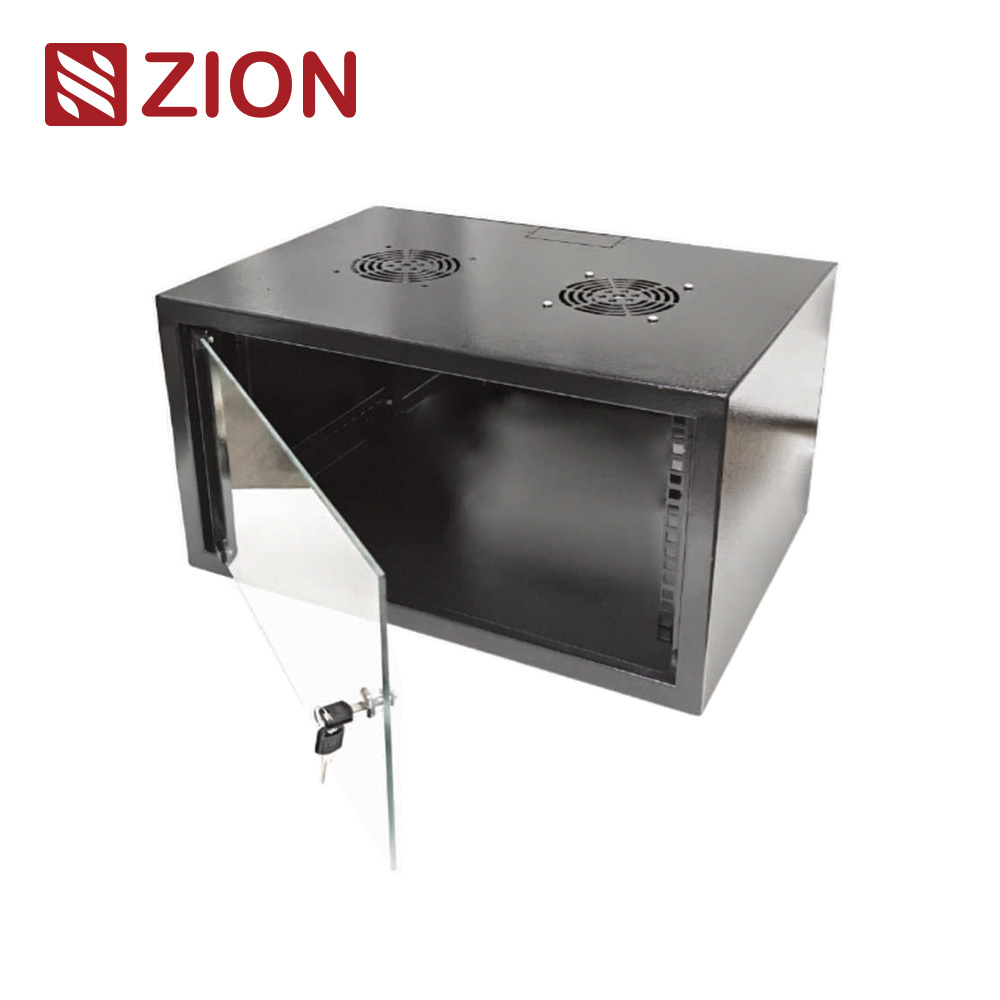

CAB 400 Wall Cabinet

A compact 19-inch wall-mount cabinet series designed for network, telecom, and IT equipment in space-limited indoor environments, offering secure housing, flexible configurations, and easy maintenance.

19″ Wall Mount
400 mm Depth
Fixed / Swingframe
IP20 Protection
Quick Takeaway

CAB 400 Wall Cabinet is a compact, standardized wall-mount enclosure built for 19-inch IT and telecom equipment. With fixed and swingframe options, tempered glass door, SPCC steel construction, and optional fan or shelf, it is well suited for flexible indoor rack deployment.


■ Product Overview

The ZION CAB 400 Wall Cabinet Series is designed for reliable installation of 19-inch network, telecom, and IT equipment in space-limited indoor environments. With robust SPCC steel construction and standardized mounting, it provides secure equipment housing, easy maintenance, and flexible configuration options for access-layer and distribution networks.

The series is available in Fixed, Swingframe, and Swingframe with Shelf versions, allowing installers and integrators to select the most suitable structure according to installation depth, maintenance access, and airflow requirements.


CAB 400 Wall Cabinet with 400 mm Depth, 60kg Loading Capacity, and SPCC Steel Construction for Network and IT Equipment 0

■ Standards Compliance

ANSI/EIA RS-310-D · IEC 60297-2 · DIN 41497 Part 1


■ Key Features

Standard 19-Inch Design

Compatible with standard 19-inch network, telecom, and IT equipment.

Compact 400 mm Depth

Designed for space-efficient installation in compact indoor environments.

Tempered Glass Front Door

Provides equipment visibility with secure locking for safer operation.

SPCC Steel Structure

Built with high-strength cold rolled steel for reliable enclosure support.

Fixed or Swingframe Options

Supports easier rear access and flexible deployment needs.

Optional Fan and Shelf

Allows airflow enhancement and accessory expansion based on project needs.


■ Material & Construction

Item Specification
Type A Mounting profiles: 1.2 mm; Other structural parts: 1.0 mm
Type B Mounting profiles: 1.5 mm; Other structural parts: 1.2 mm
Static Loading Capacity Up to 60 kg
Surface Treatment Degreasing → Pickling → Phosphating → Powder Coating
Protection Level IP20

CAB 400 Wall Cabinet with 400 mm Depth, 60kg Loading Capacity, and SPCC Steel Construction for Network and IT Equipment 1


■ Available Models

SKU RU Height Depth Width Material Type
CAB-4U/1S-SF-GD 4U 220 mm 500 mm (100/400) 570 mm Type A
CAB-6U/1S-SF-GD 6U 310 mm 600 mm (200/400) 570 mm Type A
CAB-9U/1S-SF-GD 9U 445 mm 600 mm (200/400) 570 mm Type A
CAB-12U/1S-SF-GD 12U 635 mm 600 mm (200/400) 570 mm Type B
CAB-15U/1S-SF-GD 15U 789 mm 600 mm (200/400) 570 mm Type B


■ Typical Applications

Office Network Cabinets

Ideal for structured cabling, switches, patch panels, and access-layer hardware.

Telecom Distribution Points

Provides compact wall-mounted protection for telecom and communication devices.

IT Equipment Housing

Suitable for routers, small servers, and distribution equipment in indoor spaces.

Space-Limited Installations

A practical choice where compact depth and wall mounting are important.

Größe und Tag:

FC-Verbindungsstück-Kreuz schließen Kabinett an,

FTTH-Kreuz schließen Kabinett an,

Kreuz 96F schließen Kabinett an

Kontaktdaten
Zion Communication

Telefonnummer : +8618268009191

WhatsApp : +8615088607575
